1.5kw On grid Controller

没有此类产品
Description

1.5kw On grid Controller Features:

 Big LCD display. The images tell working state visually. Various data show: real-time wind

turbine voltage, current, solar panel voltage, current, DC output voltage, current, total power

generation.

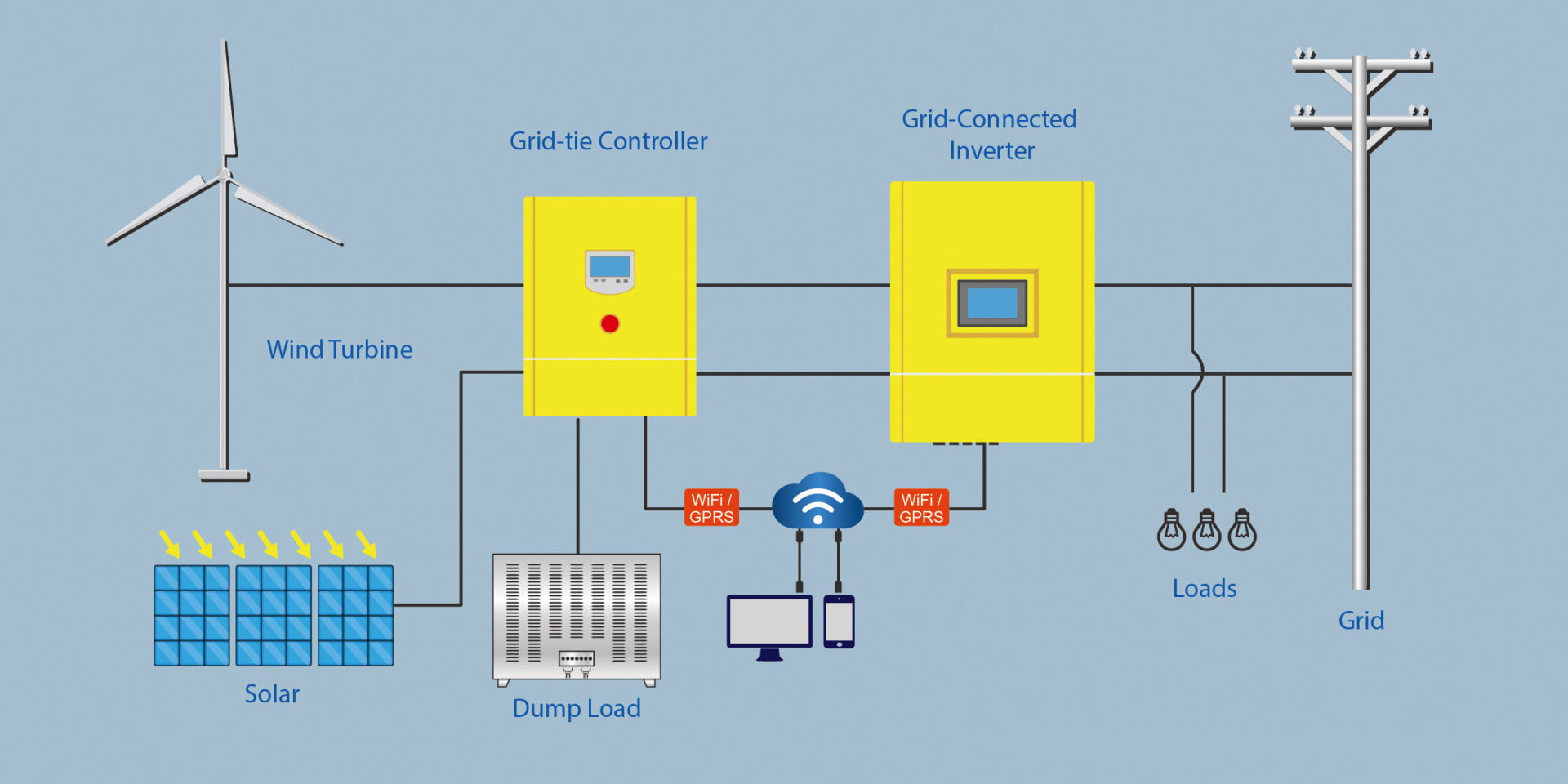

● Two sets of control systems:PWM constant voltage system and three-phase dump load

system.

● When the strong or super-strong wind conditions, the controller can conduct constant voltage

output to ensure the inverter safety running.

● When the condition of disconnected grid-connected inverter, the controller can conduct

constant voltage output and wait for inverter resumption.

● When the grid is cut off, the controller will automatically control wind turbine brake and the

inverter will stop output to grid. When the grid resuming, the controller stops brake wind

turbine and the inverter will resume power supply.

● The inside of the controller is equipped with surge protector. Contain the over voltage into

the wind turbine under the bearable voltage of the equipment or system. On another way, to

conduct the strong lightening current into the earth directly to avoid any damage of

equipment.

● The controller is equipped with emergency stop switch; in case of emergency, press down the

emergency stop button in the front panel to cut off all power supply of the controller and the

 wind turbine will immediately brake.

● The controller is equipped with manual three-phase dump load switch. To using this switch,

the wind turbine will brake.

※ Adopt Modbus Communication protocol. Convenient to carry out the secondary development.

※ Adjusting the technical specification via RS485 is available. Convenient to adjust the different wind turbines for professional customers.

※ Support WIFI and GPRS. Customers can monitor the real-time working state of the on grid wind power system via PC and mobile and query history working sate. Both Android and OS are compatible in Mobile.

※ Can increase the solar panel control system according to customer requirements.

※ For the different wind turbine, the controller can be equipped with mechanical yawing, rotate tail control, furled empennage, mechanical brake, hydraulic brake, electromagnetism brake and other brake functions.

Specification:

Type

FKJ-GT1.5KW

Wind turbine rated power

1.5KW

Wind turbine Max. power

3KW

Wind turbine rated voltage

AC220V

*Solar panels power (optional)

300W

Function

Rectifier,control, DC output

Automatic protection function

Over voltage protection, network electric cut off protection, regulated supply output, arrester

Manual function

Manual brake, reset, emergency switch

Display mode

LCD

Display content

Wind turbine voltage, current, power; Solar voltage, current, power; DC output voltage, DC output current, DC output power, total power.

PWM constant voltage

≥320dc

Wind turbine 3-phase dump load voltage

350±5Vdc

Wind turbine 3-phase dump load time-lapse

12-20 min

Solar panels fuse

2A

PWM dump load fuse

10A

Fuse of DC output

16A

Work environment temperature

-30-60°C

Relative humidity

90% No condensation

Noise (1m)

40dB

Degree of protection

IP20 (Indoor)  IP65 (Outdoors)

Cooling method

Forced air cooling

*Communication interface (optional)

RS485/USB/GPRS/WIFI/Ethernet

*Temperature compensation (optional)

-4mv/°C/2V,-35°C~+80°C,Accuracy:±1°C

Size of the controller (mm)

510*360*240

Weight of the controller

15Kg

Size of the dump load (mm)

410*360*120

Weight of the dump load

7Kg
